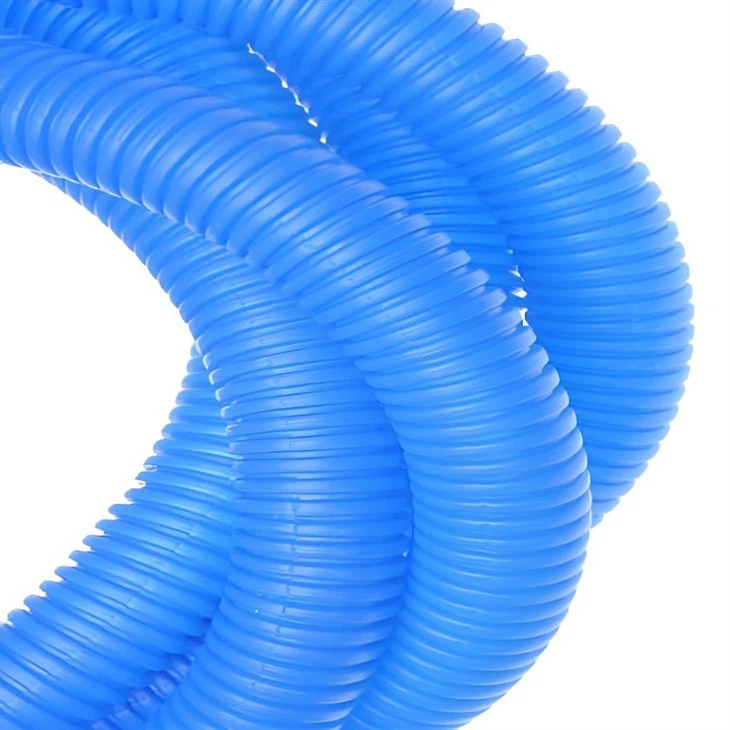

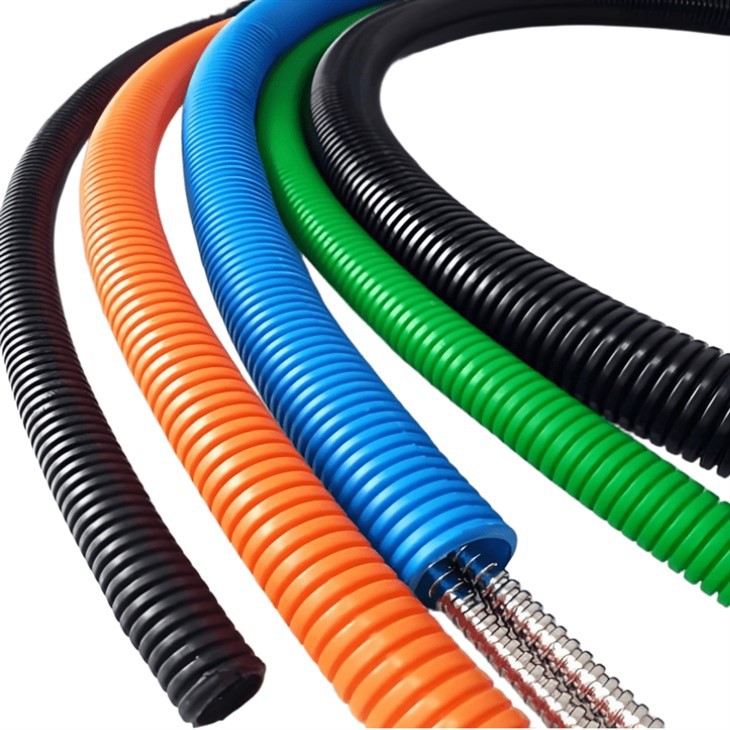

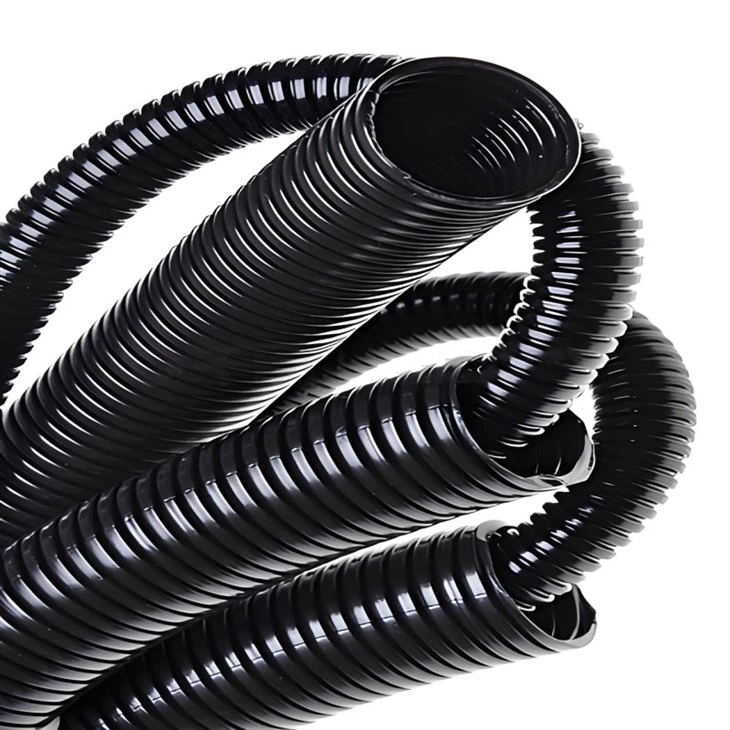

Outdoor Flexible Non-metallic Conduit

Outdoor Flexible Non-metallic Conduit

Details
Plastic corrugated pipes are flexible pipes with a corrugated structure, featuring the following characteristics:
- Strong flexibility: The corrugated design of the pipe wall allows it to bend and twist freely, adapting to complex routing paths. It is especially suitable for use in narrow spaces or scenarios requiring frequent direction changes, and is not easy to crack after bending.
- Good protection: Made of materials such as polyethylene and polypropylene, they have acid-alkali resistance and corrosion resistance. They can resist erosion from moisture, oil stains and chemical substances, protecting internal cables or pipelines from damage.
Category
Galvanized Conduit
Share to
Send Inquiry
Description
Technical Parameters

Plastic corrugated pipes are flexible pipes with a corrugated structure, featuring the following characteristics:



1

Strong flexibility: The corrugated design of the pipe wall allows it to bend and twist freely, adapting to complex routing paths. It is especially suitable for use in narrow spaces or scenarios requiring frequent direction changes, and is not easy to crack after bending.

2

Good protection: Made of materials such as polyethylene and polypropylene, they have acid-alkali resistance and corrosion resistance. They can resist erosion from moisture, oil stains and chemical substances, protecting internal cables or pipelines from damage.

3

Lightweight and easy to install: They are light in weight, making transportation and construction convenient. They can be cut without professional tools, and can be quickly fixed through joints during connection, greatly improving installation efficiency and reducing labor costs.

4

Compression and impact resistance: The corrugated structure disperses external pressure, having certain resistance to extrusion and impact, and can withstand slight mechanical collisions, reducing the risk of damage to internal pipelines.

5

Controllable permeability: Some models have good air permeability and drainage performance, suitable for scenarios requiring heat dissipation or drainage; they can also be sealed through special treatment to meet waterproof and dustproof needs.

6

Widely used: With various specifications, they can be used to protect wires, cables, water pipes, air pipes, etc., and are applied in construction, automobile, machinery, agriculture and other fields, being flexible and practical pipes.



Total Product Parameters





Parameter Category

Specific Description

Material Composition

Mainly made of high-density polyethylene (HDPE) or polypropylene (PP), with additives such as antioxidants and weathering agents

Nominal Diameter

Common specifications: Φ20, Φ25, Φ32, Φ40, Φ50, Φ63mm; smooth inner wall reduces cable abrasion

Structural Characteristics

Corrugation spacing 5~10mm, wave peak height 3~5mm; features both flexibility and ring stiffness, allowing axial bending

Temperature Resistance Range

Operating temperature -20℃~70℃; HDPE has excellent low-temperature impact resistance, while PP has better high-temperature resistance

Ring Stiffness Class

Divided into S1 (≥4kN/m²) and S2 (≥8kN/m²); S2 class is suitable for buried heavy-load environments

Applicable Standards

Complies with GB/T 19472.1 "Polyethylene (PE) Structured Wall Piping Systems for Buried Applications - Part 1: Polyethylene Double-Wall Corrugated Pipes"
